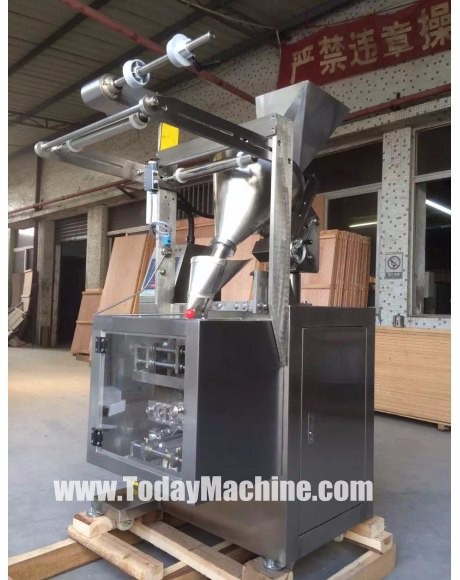

0-1000g Granual/powder bag packing machine with Volumetric Cup Filler
0-1000g Granual/powder bag packing machine with Volumetric Cup Filler
Model: DXD-280C / DXD-450C
Use:
This machine is suitable for food, chemical, pharmaceutical, seasoning powder, granule and fine part icle packing; particularly suitable for packaging milk powder, bean milk powder,sugar granule, wheat powder, dessicant and so on;
Characteristic:
l It can full automatic carry out the process of sachet forming, filling and sealing, also can add d ate and batch number printing device, gas-flushing device, punch (a hole in the sachet for hanging t o display the product).
l Touch display panel
l Frequency control of motor speed
l Using micro computer controller and Stepping motor with photoelectric switch position, easy to adj ust length, precisely bag-making.
l Using rotate measuring cup, lower the volume error, more accurate measurement.
l Silent working noise. Sealing tight, avoid leak or get damp.
l Film feeding pinch mechanism, film with a little static can also be used.
l Wide range control for packing speed.
l Numerical control cutter can be added, it can set 2-99 bags(bags connected) automatic counting and then cutting.
l When the roll film is end, machine will stop running automatically. It can automatic detect the fa ult.
Optional device:
n Date & batch printer
n Gas-flushing device
n Easy tear opening
n Numerical control cutter
Technical parameter:
Model |
DXD-280C |
DXD-450C |
Film width |
Max 280mm,14inch |
Max 400mm |
Bag size(mm) |
L: 50-180mm W: 60-140mm |
L: 40-280mm W: 50-190mm |
Packing speed |
10-80pcs/min adjustable |
10-80pcs/min adjustable |
Bag type |
Pillow seal, 3 side seal, 4 side seal, triangle seal |
Pillow seal |
Packing range |
0-20g, 10-100g |
100-1000g |
Outer size(L x W x H) |
1100x990x1660mm |
1200x1190x1770mm |
Total power |
220V/110V AC 50HZ 1.2KW |
220V/110V AC 50HZ 3.2KW |
Machine weigh |
280kg |
400kg |
0-1000ml liquid bag filling sealing and packaging machine with pump
Model: DXD-280L / DXD-450L
Use:
This machine is suitable for packing food, chemical, pharmaceutical, condiments, daily necessities a nd other liquid materials. Such as ketchup sachets, miso soup, sauce, oil, beverage, yogurt, shampoo , hand sanitizer.
Character:
l It can full automatic carry out the process of sachet-forming, material-filling, sides-sealing, sa chet-cutting and quantity-counting.
l Touch display panel
l Frequency control of motor speed
l Date and batch number printing device can be added. Mixing system and Heat preservation system(0-1 50 degree) can be added.
l Packaging products can select by tooth type cutting, scissors type flat cutting or with a "straigh t-line" notch cutting. Easy tearing mouth device can be added, for customers to open the packaging b ag conveniently. Punch in the bag can be added.
l The machine contacting parts are made of stainless steel, fit to food quality standard.
l Stepping motor with photoelectric switch positioning, conveniently adjust length without stopping the machine working, high precision bag forming.
l Wide range control for packing speed.
l Intelligent cursor positioning 1-2 bag can be fixed in place.
l Seal with intelligent temperature control table, the sealing error control within 2 degrees.
l Silent working noise. Sealing tight, avoid leak or get damp.
l Numerical control cutter can be added, this can set 2-99 bags(Series bag) automatic counting and t hen cutting.
l When the roll film is end, machine will stop running automatically. It can automatic detect the fa ult.
Optional device:
n Date & batch printer
n Easy tear opening
n Numerical control cutter
n Mixing system
n Keep warm system
Technical parameter:
Model |
DXD-280L |
DXD-450L |
|
Film width |
Max 280mm,14inch |
Max 400mm |
|
Bag size(mm) |
L: 40-180mm W: 10-140mm |
L: 40-280mm W: 50-190mm |
|
Packing speed |
10-80pcs/min adjustable |
10-80pcs/min adjustable |
|
Bag type |
Pillow seal, 3 side seal, 4 side seal, triangle seal |
Pillow seal |
|
Packing range |
3-50ml,20-100ml, 50-300ml |
50-300ml, 100-600ml, 200-1000ml |
|
Outer size(L x W x H) |
1100x990x1660mm |
Contact : WU PAIGE, 0086 754 86305305
