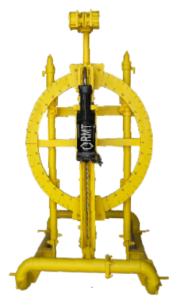

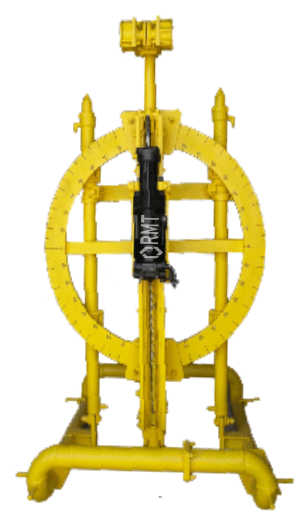

Simba Junior
RMT Simba Junior also known as Long hole drilling machine is the most versatile percussion drill machine for tunnelling, "drifting & long hole drilling" and cable bolting for roof supports. The equipment is capable of drilling up to 25 meters with hole dia of 57mm in underground metal mines with drill steel support working in 3 meter height.

We also offer Lateral movement version which has Lateral movement of feed beam by manual feed screw of 54 mm, to travel the feed beam in either direction up to 550 mm from centre, to give facility of doing upward hole at 3 positions without shifting the complete machine.


Features

360° rotation for convenient drilling at any angle
Automatic rod clamp for easy rod handling
Drifter directional control with reverse / forward
Feed motor with reverse / forward direction control
Water connection for hold flushing
Lateral movement for parallel drilling
Integrated oil lubricator and oil flow control.
Automatic rod clamp for easy rod handling.
Water connection for hole flushing


Technical Details
Simba Junior Standard Version
Pneumatic drifter RMT 120F
Hole Diameter 48 - 57 mm 1.88 - 2.24"
Drill Rod Size R32
Drill Rod Length 1.20 Mtr. 4 ft
Drilling Length 25 Mtr. max. 82 ft
Air consumption 400 cfm 189 l/s
Drilling Rate 1 meter in 4 minutes
Feed Beam Screw Feed Type RMT-46
Rod Catcher Pneumatic Type RSP-10
Ring Size 1500 mm 59"
Dimension (L x W x H) 1780 x 1550 x 2600 mm 70″ X 61″ X 102″
Column Bar Height Closed - 2200 mm, Open - 3700 mm Closed - 87", Open - 146
