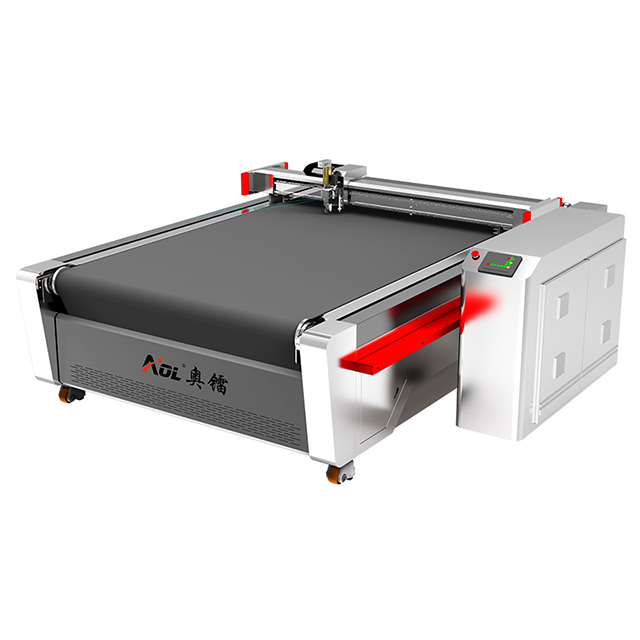

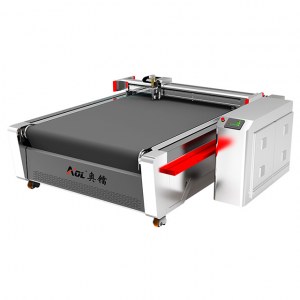

AOL Knife Cutting Machine

NO.1 Application:
1).This machine is suitable for corrugated paper, cardboard, composite paper, gray paper, honeycomb board, packaging box, gift box, box and other packaging materials cutting, V-slot, indentation and other processes.

2).Widely used in various crafts, advertising display, stickers, photo posters, white cardboard, kraft paper, KT board, photo film, acrylic, PE material, honeycomb panels and other advertising printing material cutting process

3).Widely used in single/multilayer glass fiber, glass fiber cotton, prepreg, carbon fiber, carbon fiber felt, boron fiber, aramid fiber, ceramic fiber, soft glass, PVC and other composite flexible materials, to achieve a perfect cutting process.

NO.2 Features

1). The platform detection device regulates the knife pressure automatically, enabling a level pl atform and perfect cutting.

2). The high precision AOL CNC oscillating knife cutting machine can induce draft separately and eas ily cuts small pieces.

3). The anti-collision and the built-in auto-sensing devices ensure the security of AOL cnc oscillat ing knife leather cutting machine.

4). High efficiency can be realized without making a high-cost knife model.

5). The high precision AOL CNC oscillating knife leather cutting machine is designed for production with small quantities and can save on costs while maintaining speed and accuracy.

NO.3 Technical Parameter

Model : AOL CNC knife cutting machine

Working area: 1300*900mm 1600x2500mm 1800x2500mm 2100X2500MM
(Customized )

Multi heads for choose: Dual-head, dual-gantry
Multifunctional tools: Oscillation Knife, Circle Knife, Pneumatic Knife, Punching etc

Safety device: Infrared sensors, responsive, safe and reliable

Cutting speed: 200-2000mm/s

Cutting thickness: ≤50mm (according to different cutting materials)

Cutting materials: Glass fiber, glass fiber cotton, prepreg, carbon fiber, carbon fiber felt, boron fiber, aramid fiber, ceramic fiber, soft glass, PVC, leather leather, sponge composite skin, XPE material, wire ring foot pad, leather, soft glass , silicone, rubber materials and other composite flexible materials

Fixed mode: Vacuum suction table (auto feeding table for optional)
Transfer file: Network port

Transmission system: Yaskawa servo motor, Linear guide rail, synchronous belt, ball screw
Rated power: 11kw

Voltage : 220V/50HZ

Control system: LCD touch screen

Working environment: Temperature 0-40 degree, humidty 20%-80% RH

Software: Automatic marker software, template entry software (for optional)

Support file format: AI、PLT、DXF、CDR etc
Machine size: 3570x2290x1165mm 3570x2500x1165mm 3570x25800x1165mm (Or Customized )

NO.4 Production Advantage

1). Composite material environmental protection cutting, no smoke and dust

2). Independent research and development of high-end 7-axis motion controller

3).Low-decibel energy-saving vacuum pump

4).Automatic feeding structure optional
