Heat shrinkable casing heating equipment Heat shrinkable tube blower with precise contr...

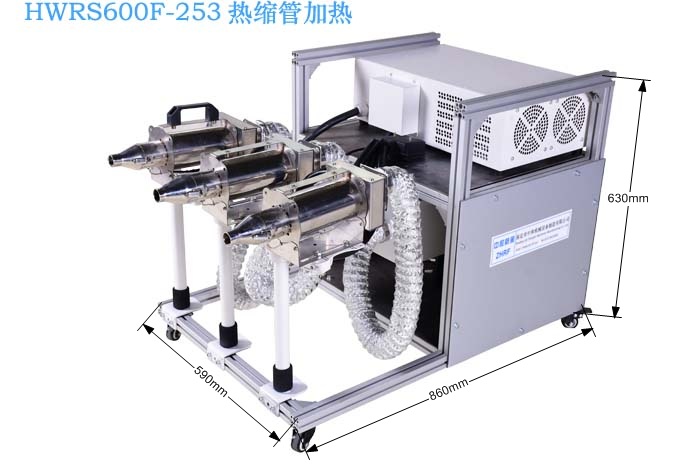

HWRS600F-253 three-outlet heat-shrinkable tube heating air gun is suitable for heat-shrinkable tube heating and shrinkage, high thermal efficiency, durable and accurate temperature control.It can work continuously for 24 hours without interruption. It is especially suitable for installing on assembly line.The three outlets are heated, the large diameter heat shrinkable tube and the heat shrinkable film are heated. Characteristic: Power regulation Solid state relay is used to control power output and temperature, and output is stable. Heat insulation Double layer heat preservation.The strong machine casing makes it safe and reliable,can maintain long-term high temperature work. Digital display temperature regulation three outlet uniform temperature control Each outlet is equipped with a temperature sensor, which can adjust the temperature according to needs, and the three ports are unified temperature control. High heat exchange efficiency Ingenious design of wind tunnel let the air uniform through the inside and outside of the helical heating wire.Heat exchange near 100%,the loss of wind pressure is less. Term ordering detection function This machine control system is equipped with motor item ordering sequence detection function.If the item ordering error,the item ordering warning indicator lights up. Remote open control This machine has a remote control interface, which can control the start and stop of the machine remotely. Fan delay function In order to protect the heating core and prolong the service life of the heating core, the machine has a time delay function of downtime and blow drying. After the machine stops working, the hair dryer will blow off for a minute before it can be shut down. Air flow regulating valve The air inlet of the blower is equipped with a manual air volume regulating valve, and the air volume can be adjusted according to the needs. Security It has overheating overload protection, power cut protection device, emergency stop switch, phase sequence protection, fully guarantee the safety of the equipment, do not produce exhaust gas, and meet the environmental protection.This machine can operate continuously for 24 hours all around the year. classification Item parameter size Overall machine size 680×460×460mm The size of the air outlet The diameter is 50mm or 25mm can be selected according to the needs Outlet number 3 Heat preservation layer Material double insulation heater Name Electric hot wire Heater power 3*2KW, a total of 6KW Heating wire life 100000hours temperature control temperature control Solid state relay Temperature control meter digital control control accuracy ±2℃ Maximum temperature <395℃ blower power 200W Maximum air volume 280M3/H，the actual air volume is about 138M3/H static pressure 380pa Power Supply Power demand 380V，50HZ Overall machine power 6300W weight Overall machine weight 26KG</p>
