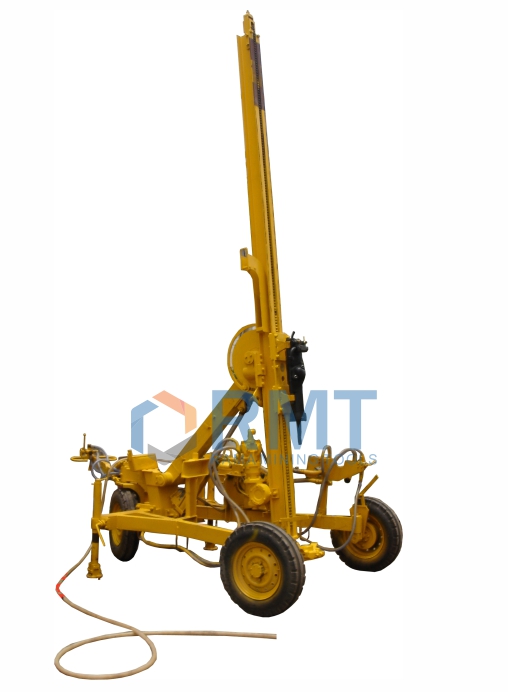

RMT 25 (TH) - Wagon Drill
Quantity : 1 Price : 5000-11000$
The Top Hammer version of RMT Wagon Drill is equipped with very high performer pneumatic drifter “RMT 120F” which is the same as “BBC 120F Drifter”. The drifter comes with Rifle Bar Rotation feature. With a quick conversion kit, Top Hammer Version can be converted to the DTH version of Wagon Drill. It is mostly used in Open Cast Machine with 5.1-meter long Feed Beam and Sand & Limestone mines with 4.2-meter long Feed Beam. It is also used in underground mines with 2.5-meter long Feed Beam.
Model # | RMT 25 (TH) | |
Version | Top Hammer | |
Pneumatic Drifter | RMT 120F | BBC 120F | |
Drilling Depth | 20 - 40 meter (66 feet - 131 feet) | |
Hole Diameter | 48 - 76 mm | 2" - 3" |
Drill Steel | R32 / R38 / T38 | |
Drill Steel Length | 1.20 Meter, 2.50 Meter, 3 Meter | |
Air Consumption | 400 cfm at 7 bar | |
Details of Feed and boom | As below | |
Feed Type | Chain Drive | |
Feed Beam Length | 5430 mm, 4425 mm, 2825 mm | |
Travel Length | 3940 mm, 2200 mm, 1500 mm | |
Feed Force | 8kN | 1.8 lb |
Boom type | Single section hand operated Hydraulic cylinder | |
Details of Carrier | Details in attached brochure | |
Transport Dimensions | Details in attached brochure |
Contact : Amit Miharia, 9836754560
Good deal: buying from seller
