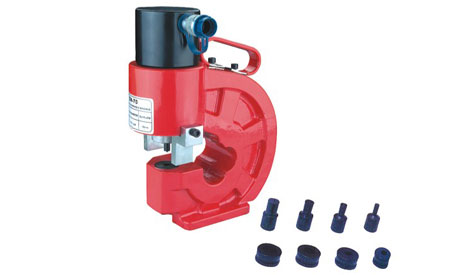

Item: Hydraulic puncher hole machine
Item no.: CH-70
Description:
CH-60、CH-70 hydraulic puncher hole machine is specialized for the hole digging of corner steel、flat steel、brass plate and other metal material, especially for electric power building and other industry filed operation;
SYD-35 metal digger is an advanced hand hydraulic tool which can dig the holes in the stainless steel sheet with the thickness less 1.5mm the press equipment can not do like this, easy operation, force-saving, quick; Smooth finished surface, not limited by place and location.
Model: CH-70
Thickness (mm): 12
Output (T): 35
Depth of throat (mm): 110
Weight (kg): 28
Mould (mm): 3/8＂(Φ10.5), 1/2＂(Φ13.8), 5/8＂(Φ17), 3/4＂(Φ20.5)
Remark: Can match CP-700 or ZCB-6-5
