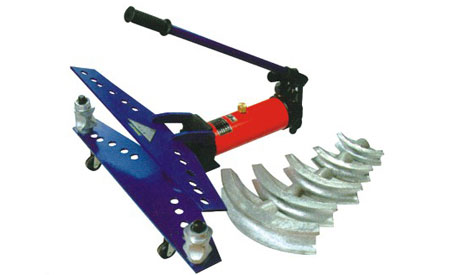

Split unit hydraulic pipe bender

Item: Split unit hydraulic pipe bender
Item no.: CPB Series

Description:
It is suit for common water pipe, wire pipe, carbon steel pipe, thick wall conduit tube, bend the angle with 90 degree;
1/2＂-2＂can be shaped 90 degree on time, 2 1/2＂-4＂can reach suitable radian which must remove pipe and bend pipe five times.

Model: CPB-2 CPB-3 CPB-4
Output (T): 10 19 22
Travel (mm): 250 320 415
Range (mm): Ø21.3- Ø60 Ø21.3- Ø88.5 Ø21.3- Ø108
Mould: 1/2＂, 3/4＂, 1＂, 1 1/4＂, 1 1/2＂, 2＂, 2 1/2＂, 3＂, 4＂
Thickness (mm): 2.75-4.5 2.75-4.5 2.75-6
Weight (kg): 53 116 156
