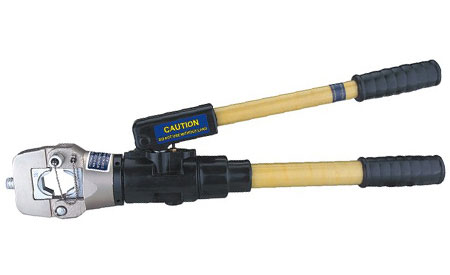

Item: Hydraulic crimping tool
Item no.: CPO-400
Description:
Design to accommodate hexagonal, circular shell and indent type dies for applying compression fittings to copper, aluminum and ACSR conductors;
Two stage pumping action for rapid ram advance to the connector hold position with minimum pumping action;
Automatic bypass when 700kgf/cm2 of oil pressure is reached;
The glass fiber operation insulates stick, can bear the electric voltage 20kvs, keeping on five minutes;
180 degree rotate head;
The pressure outside the body adjusts to press the valve, do not need the whole structure to tore down;
Comes complete with double molded plastic case.
Model :CPO-400
Range (mm2): Up to 250 copper Conductor size
Output (T): 13
Stroke (mm): 22
Storage oil (cc): 145
Mould (mm2): 50, 70, 95, 120, 150, 185, 240, 300, 400
Voltage (V): 20,000 V/min
Weight (kg): 6.3
