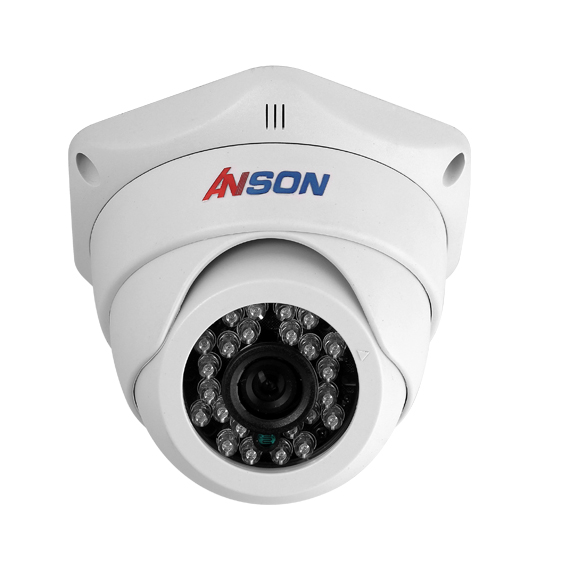

China new sell 1.0mp/1.3mp IP camera support onvif2.0 P2P Hisilicon resolution cheap cc...

Camera

Model

AX-H100DA-F-IP

AX-H130DA-F-IP

Image Sensor

1/4" progressive scan CMOS, OV9712 + Hi3518E

1/3" progressive scan CMOS, AR0130 + Hi3518E

Picture Elements

1280(H)*720(V)

1280(H)*960(V)

Minimum illumination(color ,B/W,IR ON)

1.0Lux@F1.2( color), 0.1 Lux@F1.2 (B/W),0LUX(IR ON)

System Structure

Embedded RTOS design, Dual Core 32 bit DSP

Hard Compression, Watch Dog, 16M FLASH

Electronic Shutter Speed

1/25s~1/20,000s

Lens

Megapixel

Yes

Day/Night

Yes( with IR CUT filter)

Lens Type

fixed

Focal Length

3.6mm

Maximum Aperture

F/1.2

Mount

CS

Image Format

1/2.7”

Operation (Focus/Zoom/Iris)

Manual/Manual/DC drive

IR Led Quantity

24pcs

Max IR Distance

20m

Operation

Video Compression

H.264

Video Streaming

From H.264

Video Output

1Vp-p Composite Output (75 Ohm, BNC)

Video Streaming

0.1M~6Mpbs(Adjustable)

Frame Rate

25fps at 1280*720

20fps at 1280*960

Video Resolution

25fps(1280*720)

20fps(1280*960)

Main Stream

1280×720

1280×720; 1280×960

Sub Stream

640×360,480×270,320×180; CIF as default

Network

Interface

10/100M Ethernet

Ethernet Protocol

ONVIF/RTSP/FTP/PPPOE/DHCP/DDNS/NTP/ UPnP

Network Port

RJ45

General

Environment Temperature

-10°C~60°C (14°F~140°F)

Humidity

10% to 90% (No condensation)

Power Source

DC12V

MAX. Power Consumption

12W

Weight

0.6KG

Regulatory

CE ROHS

Web interface

Installation Management

Web-based Configuration

Maintenance

Firmware upgrade through UC software

Applications

Network Storage

NVR, SERVER

Smart Device

iPhone, Android

Live viewing

IE,mobile phone
