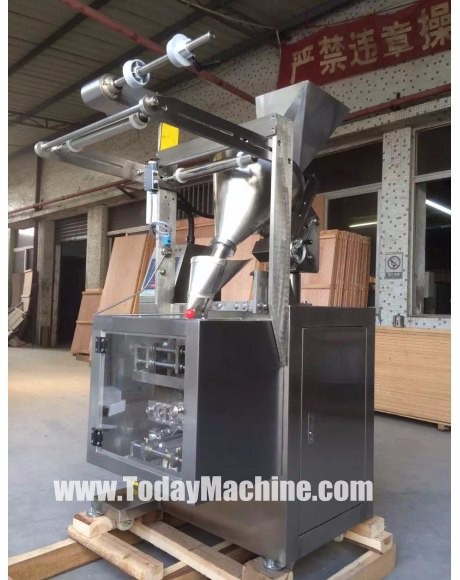

0-1000g Granual/powder bag packing machine with Volumetric Cup Filler

0-1000g Granual/powder bag packing machine with Volumetric Cup Filler
Model: DXD-280C / DXD-450C

Use:

This machine is suitable for food, chemical, pharmaceutical, seasoning powder, granule and fine part icle packing; particularly suitable for packaging milk powder, bean milk powder,sugar granule, wheat powder, dessicant and so on;

Characteristic:

l It can full automatic carry out the process of sachet forming, filling and sealing, also can add d ate and batch number printing device, gas-flushing device, punch (a hole in the sachet for hanging t o display the product).

l Touch display panel

l Frequency control of motor speed

l Using micro computer controller and Stepping motor with photoelectric switch position, easy to adj ust length, precisely bag-making.

l Using rotate measuring cup, lower the volume error, more accurate measurement.

l Silent working noise. Sealing tight, avoid leak or get damp.

l Film feeding pinch mechanism, film with a little static can also be used.

l Wide range control for packing speed.

l Numerical control cutter can be added, it can set 2-99 bags(bags connected) automatic counting and then cutting.

l When the roll film is end, machine will stop running automatically. It can automatic detect the fa ult.

Optional device:

n Date & batch printer

n Gas-flushing device

n Easy tear opening

n Numerical control cutter

Technical parameter:

0-1000ml liquid bag filling sealing and packaging machine with pump

Model: DXD-280L / DXD-450L

Use:
This machine is suitable for packing food, chemical, pharmaceutical, condiments, daily necessities a nd other liquid materials. Such as ketchup sachets, miso soup, sauce, oil, beverage, yogurt, shampoo , hand sanitizer.

Character:

l It can full automatic carry out the process of sachet-forming, material-filling, sides-sealing, sa chet-cutting and quantity-counting.

l Touch display panel

l Frequency control of motor speed

l Date and batch number printing device can be added. Mixing system and Heat preservation system(0-1 50 degree) can be added.

l Packaging products can select by tooth type cutting, scissors type flat cutting or with a "straigh t-line" notch cutting. Easy tearing mouth device can be added, for customers to open the packaging b ag conveniently. Punch in the bag can be added.

l The machine contacting parts are made of stainless steel, fit to food quality standard.

l Stepping motor with photoelectric switch positioning, conveniently adjust length without stopping the machine working, high precision bag forming.

l Wide range control for packing speed.

l Intelligent cursor positioning 1-2 bag can be fixed in place.

l Seal with intelligent temperature control table, the sealing error control within 2 degrees.

l Silent working noise. Sealing tight, avoid leak or get damp.

l Numerical control cutter can be added, this can set 2-99 bags(Series bag) automatic counting and t hen cutting.

l When the roll film is end, machine will stop running automatically. It can automatic detect the fa ult.

Optional device:

n Date & batch printer

n Easy tear opening

n Numerical control cutter

n Mixing system

n Keep warm system

Technical parameter:
