Industrial 4G Router, WIFI 4G router with 4 LAN ports, RS232 port for data

Introduction of Industrial 4G Router

USR-G800 is a 4G wireless router, which provides a solution for user's device to access 4G network. USR-G800 is based on industrial high-performance embedded structure. It plays an important role in data transmission fields such as smart home, smart grid, personal healthcare and industrial control. USR-G800 has one WAN port and four LAN ports, and it supports data transparent transmission between RS232 and 4G network.
List of LTE networks: https://en.wikipedia.org/wiki/List_of_LTE_networks

Features of Industrial 4G Routers

• 4 LAN ports and 1 WAN port
• Support WiFi network
• Support 4G module with Mini-PCIE interface
• Multiple indicator lights
• Data transparent transmission between RS232 and 4G network
• Support Web setting
• A key to restore factory settings
• Both LAN port and WAN port with a rate of 10/100Mbps

Frequency Band of Industrial 4G Router

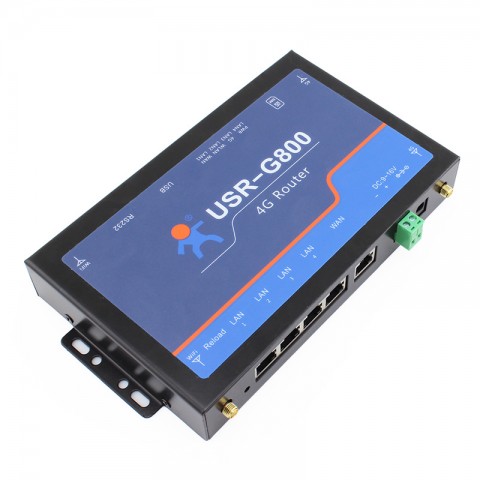

Appearance of Industrial 4G Router

4G card slot: self-locking type card slot; usim card, APN card and IOT card are available, support APN private network setting, can set priority network, when there are both wired network and 4G
RS232: four transmission protocols of TCP Server, TCP Client, UDP Server and UDP Client; realize transparent data transmission, AT command control
LED light: All eight LED lights indicate the running state of LAN port, WAN port, 4G network and wifi network

1 WAN port: support DHCP, static IP, ADSL(PPPoE) dialing and VPN virtual private network
4 LAN ports: support DHCP and static IP
Power: DC9 to 16V power supply and terminal power supply
Reload key: a key to restore factory settings
