RS232/RS485/RS422 Single Serial Ethernet Converter
Quantity : 2122 Price : 25-99
Introduction of Serial Ethernet converter

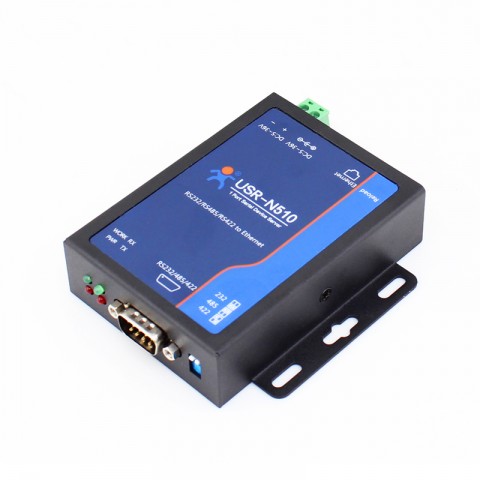

Serial ethernet converter USR-N510, which can realize bidirectional transparent transmission between RS232/RS485/RS422 and Ethernet. Through simple settings via webpage or setup software can assign working details, realize serial data and TCP/IP data package transparent transmission by serial ethernet converter. USR-N510 is based on ARM processor and it is internally integrated with TCP/IP protocol. User can easily realize embedded device networking.
Application Field For [Serial Ethernet Converter]
- Industrial data transmission, industrial automation
- security and protection monitoring, public security
- Smart home, power control, environmental monitoring, intelligent agriculture
- Door check on work attendance system, POS system, rice selling system
- Building automation system, power monitoring, self-service banking system, telecom machine room monitoring
Character
| Industrial Solution | TI Cortex M4 Solution, work temp at -40~85C |
| Power Supply | DC/Terminal type 5V~36V |
| Serial Port | RS232/RS485/RS422, 3-in-1 serial port |
| Serial Signal | RS232: TX/RX, CTS/RTS
RS485: A/B/G |
| Flow Control | Software: XON/XOFF |
| Modbus Gateway | Modbus TCP to Modbus RTU in bi-directional
Modbus Polling |
| Advanced Character | -Network Printing
-Web socket: Serial to Webpage -Modify MAC -Hardware watchdog -ARP of server domain name |
| Certification | CE/FCC/RoHs/WEEE |
| Work Mode | TCP Server/ TCP client/ UDP Server/UDP Client/ HTTPD Client |
| Built-in web page | Customized web page is acceptable |
| Protect | Surge Protection, ESD 2KV, for more harsh industrial environment |
- Point 1
-
- Ethernet 10/100Mbps, support Auto-MDI/MDIX
- A port can correspond to 2 Sockets
- Provide PC TCP/IP socket programming examples such as VB, Andriod, IOS etc.
- Point 2
-
- Virtual serial port, provide corresponding software USR-VCOM
- Baud rate: 600bpgs~230.4Kbps
- Reload button to restore default settings
- Support keep alive, rapidly detect dead links.
