Serial RS232 to Ethernet Converters, DHCP/DNS

Introduction of RS232 to Ethernet Converters

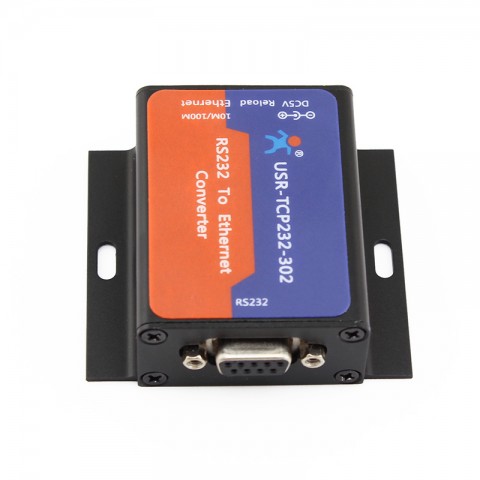

The RS232 to Ethernet Converters, used for data transparent transmission. USR-TCP232-302 is a low-cost serial device server,whose function is to realize bidirectional transparent transmission between RS232 and Ethernet. USR-TCP232-302 is internally integrated with TCP/IP protocol. User can apply it to device networking communication.

Features of RS232 to Ethernet Converters

• Support DHCP, automatically obtain an IP address and query IP address through serial setting protocol
• Support DNS function
• Set parameters through webpage
• Upgrade firmware via network
• Auto-MDI/MDIX, RJ45 port with 10/100Mbps
• Serial port baud rate from 600 bps to 230.4 Kbps, Check bit of None, Odd, Even, Mark and Space
• Work mode: TCP Server, TCP Client, UDP Client, UDP Server, HTTPD Client
• Support virtual serial port and provide corresponding software USR-VCOM
• Heartbeat package mechanism to ensure connection is reliable, put an end to dead link
• User-defined registration package mechanism, check connection status and use as custom packet header
• Under TCP Server mode, Client number ranges from 1 to 16; default number is 4
• The global unique MAC address bought from IEEE, user can define MAC address
• Restore factory default
• Across the gateway, switches, routers
• Can work in LAN, also can work in the Internet (external network)
• Provide PC TCP/IP socket programming example such as VB,C++,Delphi,Android and IOS
• Support customization

Application Field of RS232 to Ethernet Converters

• Industrial data transmission, industrial automation
• security and protection monitoring, public security
• Smart home, power control, environmental monitoring, intelligent agriculture
• Door check on work attendance system, POS system, rice selling system
• Building automation system, power monitoring, self-service banking system, telecom machine room monitoring
