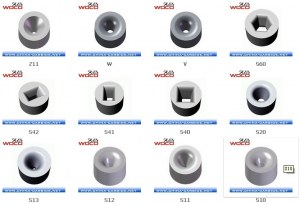

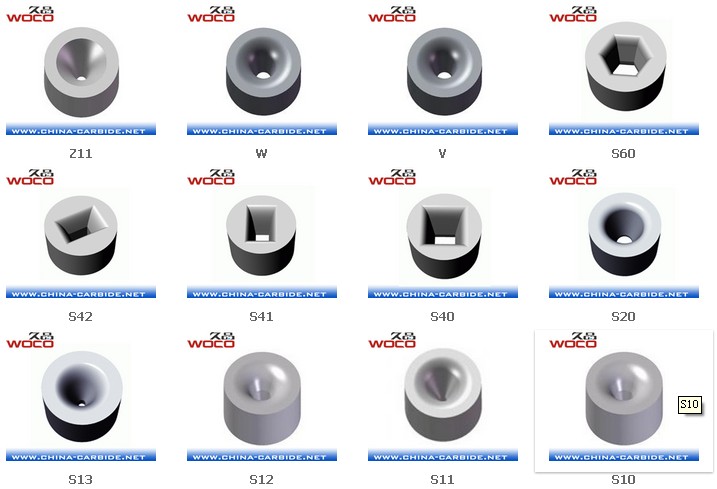

Wire drawing dies
Price : negotiation
WOCO tungsten carbide wire drawing dies feature
- We promise our cold heading dies are made of high purity tungsten powder and crack will not happen.
- more wire rod can be drawed: the size area are 20% longer than common mould, which make sure our wire drawing dies can work longer!
- our die do not get out of steel jacket easily: using advance cold bushing tech, and interference bushing craft, the wire drawing dies are tightening connect with the steel jacket.
- work eara are 20% longer, our tungsten carbide drawbench norm using life are double increaseed.
- using top tungsten steel mold core with high strength, it hardness reach 92.5 degree.
WOCO tungsten carbide drawing dies grades
|
WOCO Grade |
ISO |
WC% |
Co% |
Other% |
Average Grain Size |
Density |
Hardness |
TRS |
|
g/cm3 |
HRA |
N/mm2 |
||||||
|
YG3X |
K01 |
97 |
3 |
- |
1 |
15.1-15.3 |
≥92.5 |
≥1300 |
|
YG6 |
K15 |
94 |
6 |
- |
1.2 |
14.8-15.0 |
≥91 |
≥1700 |
|
YG6Z |
K20 |
91 |
7 |
2 |
1 |
14.3-14.5 |
≥91.5 |
≥1600 |
|
DT10UF |
K10 |
94 |
6 |
1 |
0.8 |
14.8-15.1 |
≥92.5 |
≥2200 |
|
YG8 |
K30 |
92 |
8 |
- |
1.2 |
14.6-14.8 |
≥90 |
≥1800 |
|
YG8Z |
K30 |
90 |
9 |
1 |
1.2 |
13.9-14.2 |
≥90.5 |
≥1700 |
|
DT30UF |
K20-K30 |
89 |
10 |
1 |
0.8 |
14.4-14.6 |
≥91.5 |
≥2400 |
Tolerance for tungsten carbide drawing dies grades
Contact : mason Lee, +86 15982284933
