China Embroidery machine sale

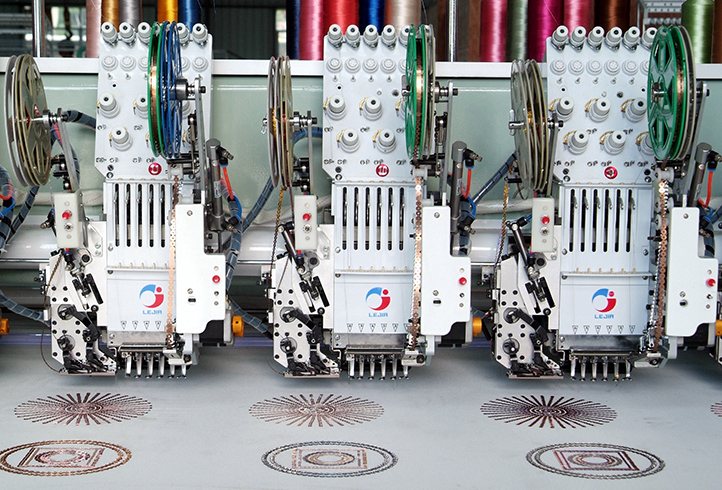

cap embroidery machine
High speed embroidery machines are developed with advanced controlling system, reliable machine body and reasonable driving structure with high speed and low noise. It reaches max speed of 1200 RPM and it's compatible with single/double side sequin device, single/double side overlapped sequin device, easy taping device, easy chenille device and beads device that makes the perfect combination with speed and embroidery quality.

Needle Number 3、4、6、9、12、15 needles for option

Head Number 1-228 heads for option

Head Distance Customized

Embroidery Area Customized

Tension Base Intelligent thread break detect

Main Shaft Motor 2.3KW Servo Motor×1pc

Upper Thread Holding Device Automatic keep locked thread device(For Option)

Embroidery Speed: 1200 (850 and 1200 rpm optional) 250-1200RPM

Auto Lubrication For Option

X/Y Motor 1.5KW Servo Motor ×2pcs

Control System Dahao Computer X/Y Drive

1.5KW Servo Motor ×2pcs

Memory 200,0000 stitches、200pcs design

Input Voltage Three phase 380V(50/60HZ)/Single phase 220V(50/60HZ)/

Input Mode U DISK Power comsumption 1.5KW-5KW

Design Format Tajima (DST), DSB, BARUDAN, ZSK, binary system,Ternary system

Stitch Length 0.1-12.7mm

Head Structure Double cam double lever structure, press foot and needle bar drive independently (normal head/single cam double lever/double cam double lever optional according to needs)

Head Lock System Solenoid jump or Motor jump

Machine Color Green/Gray

Embroidery trimming Step into the dynamic automatically cut the line design (For Option)
