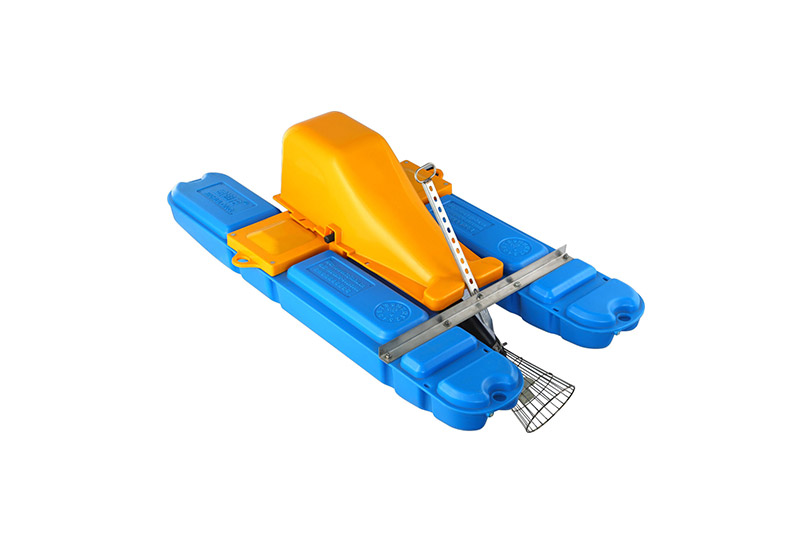

Two-Impeller paddle wheel aerator sale

Product introduction:
Tested by the China aerator for shrimp and Instrument Quality Supervision and Inspection Center in July 2009, all nine parameters show that Jinhulong paddle wheel ae「ato「has proved to meet the requirement of industrial standard SC/T6017-1999, including oxygen transfer「ate at 2.59kg/h, surpassing the standard 36.3%, power efficiency at 1.71 kg/k.W.h, surpassing the standard 36.8%. All test results show our paddle wheel aerator will make significant effect on sewage discharging at the bottom of the semi-intensive and intensive ponds.

Motor: 1hp 3phase/1phase 50hz/60hz 4spline chinese type 100% copper wire
Reducer: Bevel gear type Gear: Chromium-maganese-titanium
Impellers: we have different design, new materail HDPE with UV protecting
Float: new materail HDPE with UV protecting
Frame: 304 stainless steel
Shaft: 304 stainless steel

Technical parameter
Model Power Voltage V/50Hz Power efficiency (kg/kW.h) DO (kg/hr) AMP (A) Weight (kg) 40 Container set
kW HP
YC-0.75 0.75 1 220 ≥1.25 ≥1.6 1.25 80 185
YC-0.75 0.75 1 380 ≥1.25 ≥1.6 1.25 80 185
YC-0.75 0.75 1 380 ≥1.25 2.3~2.6 1.60 80 185
YC-1.5 1.5 2 220 ≥1.25 2.6~2.9 2.45 100 133
YC-1.5 1.5 2 380 ≥1.25 2.8~3.1 2.45 100 133
YC-1.5 1.5 3 380 ≥1.5 3.6~3.8 2.60 120 66
YC-2.2 2.2 3 380 ≥1.5 4.0~4.3 2.80 125 63
YC-2.2 2.2 3 380 ≥1.5 4.3~4.6 3.0 135 60
An Two-Impeller paddle wheel aerator with different voltage, frequency and power can be manufactured according to customer requirements.
