Simba Junior (Standard)
Quantity : 1 Price : 16800-21200$

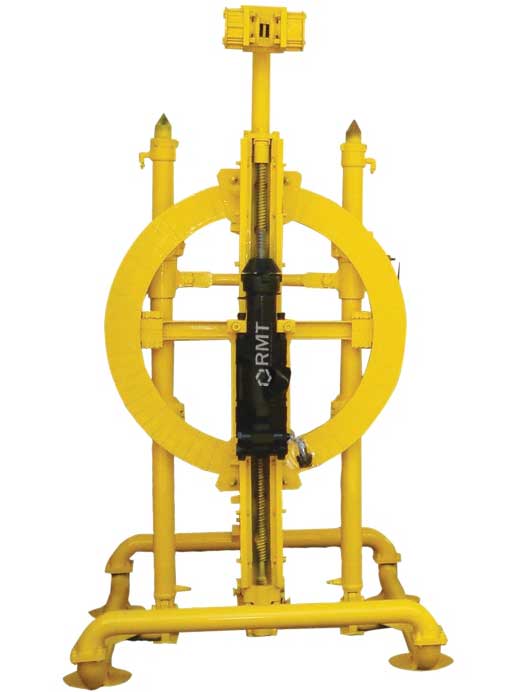

Simba Junior is capable of drilling up to 25 meters depth with 57 mm dia holes in underground metal mines. Bigger holes of 64-75 mm dia can also be done but in those cases, depth will be up to 15 meters. Holes can be made vertically upward and capable of doing the same hole in 360° direction, with the help of a graduated ring frame. Long hole drilling machine is also used for Roof Cable Bolting. RMT 120F drifter is mounted on this Simba Junior Drilling Rig / Long hole drill machine. The rig is operated with a pneumatic remote control so this rig can be easily operated by one man only.
| Weight | 1200 kg | 2640 lb |
| Pneumatic drifter | RMT 120F | |
| Hole diameter | 48 – 57 mm | 1.9 – 2¼″ |
| Drill rod size | R32 | |
| Drill rod length | 1.20 metres | 4 ft |
| Drilling length | 25 mtr. max. | 82 ft |
| Air consumption | 400 cfm | 189 l/s |
| Drilling rate | 1 meter in 4 minutes | |
| Feed beam | Screw feed type RMT-46 | |
| Rod catcher | Pneumatic type RSP-10 | |
| Ring size | 1500 mm | 59" |
| Dimension (L x W x H) | 1780 x 1550 x 2600 mm | 70″ X 61″ X 102″ |
| Column bar height | Closed – 2200 mm, Open – 3700 mm | Closed – 87″, Open – 146″ |
Contact : Amit Miharia, 9836754560
