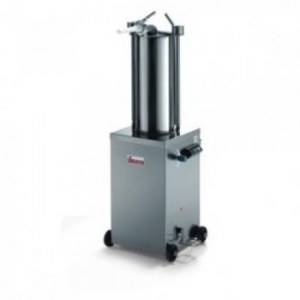

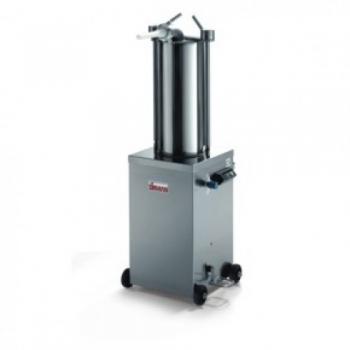

SAUSAGE STUFFERS - IS 15 IDRA

Simple and functional, the new IDRA hydraulic vertical sausage fillers feature a powerful hydraulic system

that operates at a pressure of 120 bars.

Manufactured entirely from stainless steel, the machine can be completely disas-sembled for easy cleaning without requiring tools.

It features characteristics typical of higher category models:

- fully stainless steel cover and piston;

- silicone gaskets that act inside the cylinder for better seal and longer life of the gasket;

- hermetic protection of the hydraulic cylinder;

- stainless steel piston rod;

- polished and rounded stainless steel cylinder, without obligatory direction;

- powerful and silent ventilated motor operating at 2,800 rpm with immediate action;

- automatic piston return when motor stops;

- 24V controls,

- high-precision oil flow controller;

- optional rubber wheels for mod.

IDRA15 and standard for mod.

IDRA 25-35-50;

- oil tank with level gauge.

TECHNICAL DETAILS

Model IS 15 IDRA

Power Watt 520 - HP 3/4

Cylinder capacity Lt 15

Cylinder length mm 495

Cylinder diameter mm 200

Piston stroke mm 430

Min. forward speed 2'11

Max forward speed 59"

Backward speed 35" ø

Serie exaust funnels mm 10-18-25 A mm 490 B mm 370 C mm 700 D mm 1200

Net weight kg 53

Shipping mm 740x640x1480

Gross weight kg 63
