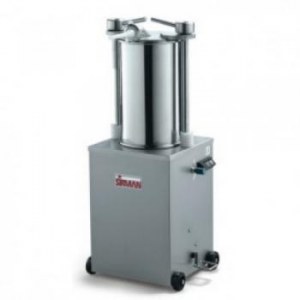

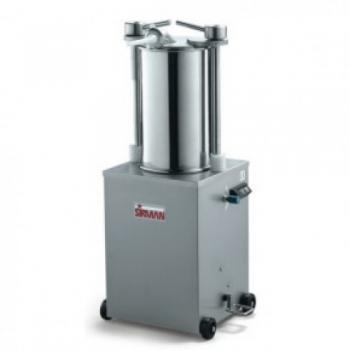

SAUSAGE STUFFERS - IS 25 IDRA

Simple and functional, the new IDRA hydraulic vertical sausage fillers feature a powerful hydraulic system

that operates at a pressure of 120 bars. Manufactured entirely from stainless steel,

the machine can be completely disas-sembled for easy cleaning without requiring tools.

It features characteristics typical of higher category models:

- fully stainless steel cover and piston;

- silicone gaskets that act inside the cylinder for better seal and longer life of the gasket;

- hermetic protection of the hydraulic cylinder;

- stainless steel piston rod;

- polished and rounded stainless steel cylinder, without obligatory direction;

- powerful and silent ventilated motor operating at 2,800 rpm with immediate action;

- automatic piston return when motor stops;

- 24V controls,

- high-precision oil flow controller;

- optional rubber wheels for mod. IDRA15 and standard for mod. IDRA 25-35-50;

- oil tank with level gauge.

TECHNICAL DETAILS

Model IS 25 IDRA

Power source Watt 520 - HP 3/4

Cylinder capacity Lt 25

Cylinder lenght mm 460

Cylinder diameter mm 260

Piston stroke mm 380

Min. forward speed 2'02''

Max. forward speed 51''

Rackward speed 32'' ø

Serie exaust funnels mm 10-18-25 A mm 565 B mm 450 C mm 950 D mm 1160

Net weight kg 91

Shipping mm 600x760x1200

Gross weight kg 103
