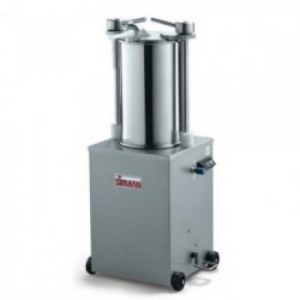

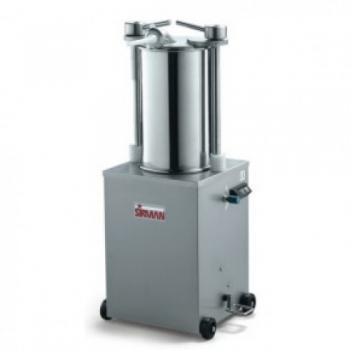

SAUSAGE STUFFERS - IS 35 IDRA

Simple and functional, the new IDRA hydraulic vertical sausage fillers feature a powerful hydraulic system

that operates at a pressure of 120 bars.

Manufactured entirely from stainless steel,

the machine can be completely disas-sembled for easy cleaning without requiring tools.

It features characteristics typical of higher category models:

- fully stainless steel cover and piston;

- silicone gaskets that act inside the cylinder for better seal and longer life of the gasket;

- hermetic protection of the hydraulic cylinder;

- stainless steel piston rod;

- polished and rounded stainless steel cylinder, without obligatory direction;

- powerful and silent ventilated motor operating at 2,800 rpm with immediate action;

- automatic piston return when motor stops;

- 24V controls,

- high-precision oil flow controller;

- optional rubber wheels for mod. IDRA15 and standard for mod. IDRA 25-35-50;

- oil tank with level gauge.

TECHNICAL DETAILS

Model IS 35 IDRA

Power watt/Hp 520/0,7

Cylinder capacity lt 35

Cylinder length mm 460

Cylinder diameter mm 320

Piston stroke mm 380

Min. forward speed 2'02

Max forward speed 51

Backward speed 33 ø

Serie exaust funnels mm 10-18-25 A mm 640 B mm 480 C mm 1000 D mm 1160

Net weight kg 101

Shipping mm 600x760x1.200

Gross weight kg 113
