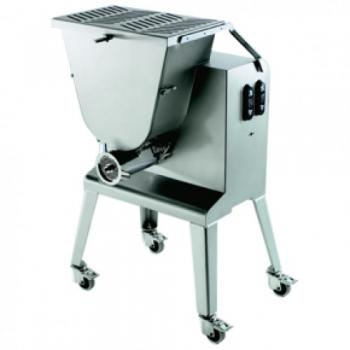

MEAT GRINDERS / MIXERS - MASTER 30

AISI 304 stainless steel construction.

Can be sprayed.

Two indipendent three-phase motor with thermal protection (on CE versons):

- 1.5 Hp mixer motor - 5 or 7 Hp meat grinder motors

- Epycycloidal, oil-bath, water protected gear box installed on meat grinder.

- Oil-bath, water protected worm gear reduction box on meat mixer.

Grinding set:

- Completely made from AISI 304 stainless steel.

- Designed for high performance.

- Machine works perfectly even if product is processed two or more time.

- Hourly output: 900 to 1.100 Kg (actual).

- Hourly output: 3500 kg (possible).

- Unprocessed meat inside grinding set at working cycle end: 50-90 g .

- Stainless steel drive pin.

- Tempered steel worm pin.

- Grinding set and mixing arms can be easily disassembled without tools.

- Safety microswitch on cover and grinding set.

- Air pistons open the meat mixer cover.

- IP 67 water protected stainless steel controls with reverse (on CE versions).

Standard accessories:

- Stainless steel self-sharpening knive and 6 mm plate.

- Worm and plate removing tool.

- Use and maintenance manual.

Optional:

- Medium and high legs with stainless steel wheels and brake.

- Stainless steel dirt protection.

- Pedal controls.

- Stainless steel 1/ 2 unger grinding set.

- Stainless steel total unger grinding set.

- Safety deflector if 8 > mm plates are installed.

- Wide selection of plates and knives.

TECHNICAL DETAILS

Model Master 30

TC Power watt 2940 Hp 4,0

IP Power watt 1102 Hp 1,5

Power source 400V/50Hz

Tank capacity Kg 30 / lt. 42

Revolurions r.p.m.

TC 200 / IP 30

Output/h. Kg/h. 600-750

Standard plate ø mm 6 A mm 630 B mm 530 E mm 680 F mm 980

Net weight kg 105

Shipping mm 840x840x900

Gross weight kg 121
