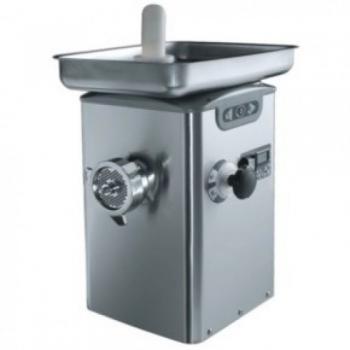

MEAT GRINDERS - TC 22 BARCELLONA ICE

Innovative extremely compact refrigerated mincer.

- Thermo-electric module refrigeratine system: without compressor.

without gas.

energy saving.

- Thermo-electric module power: 70 Watt

- Refrigerated feeding neck and grinding end.

- Self-adjusted temperature.

- Removable and easy to clean S/S tray and feeding neck.

- Same mincing features as model Barcellona.

- Easy maintenance. (no need of refrigerator technician).

- Square feeding neck. (Hight output also with preminced meat).

- Thermal protection on single phase motors.

- Quick and sturdy head locking system. (patented on 32 version).

- Option: Half/total unger system.

Patty former.

Stuffer kit. Oversize tray.

Medium legs. Safety device for Ø> 8 mm plates.

TECHNICAL DETAILS

Model TC 22 BARCELLONA ICE

Power watt 1.472 - Hp 2

Power source 230-400V/50Hz

Thermo-electric module

power watt 70 Output/h. kg/h. 300

Standard plate ø mm 4,5 A mm 250 B mm 185 C mm 310 D mm 350 E mm 225 F mm 540 G mm 615

Net weight kg 34

Shipping mm 610x510x510

Gross weight kg 36
