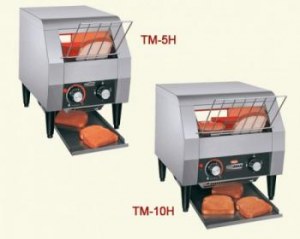

TOAST-MAX CONVEYOR TOASTERS TM-5H

The Hatco Toast-Max economy conveyor toaster offers the flexibility and performance to perfectly toast

bread and buns fast –up to 300 slices per hour!

Utilizing conveyor speed, not temperature, to determine toasting color,

allows for instant adjustment of toasting time.

• 4-position toast selector switch:off / toast / buns / stand-by mode

• 89 mm (3 ½") clearance to accommodate high profile bread products

• Easy-to-load rack with front or rear discharging

• Permanently lubricated 50/60 Hz motor

• V-shaped reflectors help capture and redirect heat

• Long lasting serpentine metal sheathed heating elements

• 102 mm (4") adjustable legs

• Pilot light that signals unit is in operation

• Discharge and crumb trays are removable for easy cleaning

Interior Cavity Openings:

TM-5H: 187 W x 89 mm H (73/8" W X 3 1/2" H).

Maximum Product Size:

245 W x 64 mm H (9 5/8" W x 2 1/2"H).

CORD LOCATION

Left side of back of unit near center.

PRODUCT SPECS

Conveyor Toaster

The electric Conveyor Toaster shall be a Hatco Model.

The toaster shall have the capacity to toast up to .... pieces per minute and it shall be rated

at ....kW, ....volts, single phase.

The toaster shall be made of stainless steel design and shall include a front mounted control panel

with variable speed control, 4-position toast selector switch and a toast collector pan.

The toaster will have metal sheathed heating elements.
