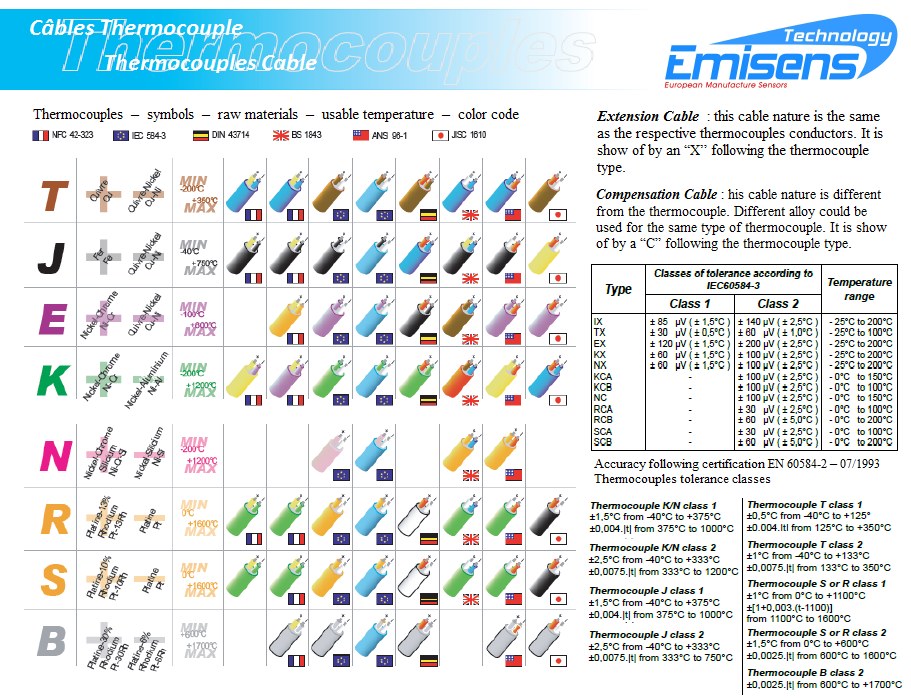

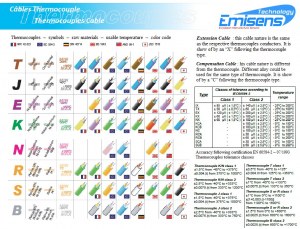

Thermocouples cable

Extension Cable : this cable nature is the same as the respective thermocouples conductors. It is show of by an “X” following the thermocouple type.

Compensation Cable : his cable nature is different from the thermocouple. Different alloy could be used for the same type of thermocouple. It is show of by a “C” following the thermocouple type.

Accuracy following certification EN 60584-2 – 07/1993

Thermocouples tolerance classes

Thermocouple K/N class 1

±1,5°C from -40°C to +375°C

±0,004.|t| from 375°C to 1000°C

Thermocouple K/N class 2

±2,5°C from -40°C to +333°C

±0,0075.|t| from 333°C to 1200°C

Thermocouple J class 1

±1,5°C from -40°C to +375°C

±0,004.|t| from 375°C to 1000°C

Thermocouple J class 2

±2,5°C from -40°C to +333°C

±0,0075.|t| from 333°C to 750°C

Thermocouple T class 1

±0,5°C from -40°C to +125°

±0,004.|t| from 125°C to +350°C

Thermocouple T class 2

±1°C from -40°C to +133°C

±0,0075.|t| from 133°C to 350°C

Thermocouple S or R class 1

±1°C from 0°C to +1100°C

±[1+0,003.(t-1100)]

from 1100°C to 1600°C

Thermocouple S or R class 2

±1,5°C from 0°C to +600°C

±0,0025.|t| from 600°C to 1600°C

Thermocouple B class 2

±0,0025.|t| from 600°C to +1700°C
