Mindrill Jackleg Drill MDS16W
Jackleg Drill :
Our product range includes a wide range of Jackleg Drill such as Jackleg Drill – MDS16W, Jackleg Drill – MDS94W, Jackleg Drill - M610 and Jackleg Drill - M630.

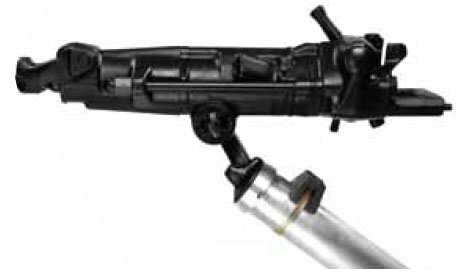

Jackleg Drill – MDS16W
All round rock drill which suits most drilling applications. It has a robust rifle bar rotation. Mechanism, long stroke and good rates in hard rock. The pusher leg control is place at the back head of the rock drill.
- All round rock drill, suitable for most drilling applications in medium to hard rock
- Long stroke, good rate
- Robust rifle bar rotation mechanism
- Pusher leg control placed in back in back head of the rock drill.
- Parts are interchangeable with ATLAS COPCO BBC16W.
|
Technical Specification (MDS16W) |
||
|
Type |
Metric |
Imperial |
|
Weight |
28.5 Kg |
63 lb |
|
Length |
705 mm |
27 3/4 inch |
|
Air Consumption |
69 l/s |
146 cfm |
|
Blows per minute |
2340 |
2340 |
|
Piston Dia |
70 mm |
2 3/4 inch |
|
Stroke Length |
55 mm |
2 5/32 inch |
|
Largest reaming diameter |
76 mm |
2 31/32 inch |
|
Hole Dia |
27 - 41 mm |
1 - 1.6 inch |
|
Shnak Size |
22 x 108 mm |
7/8 x 4 1/4" inch |
|
Optional Shank Size |
25 X 108 mm |
1 X 4 1/4 inch |
|
Working Pressure |
Bar |
Psi |
|
6 |
87 |
|
|
Suitable Pusher Leg |
MMT 51 |
|
Contact : Diptesh Dey, +91 033 26537610
