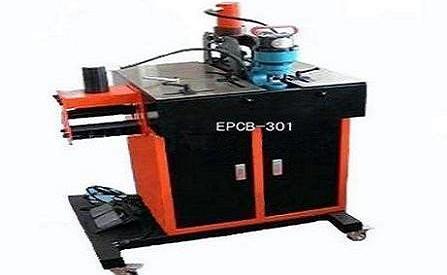

Multi-functional line production machine

Item: Multi-functional line production machine
Item no.: EPCB-301

Description:
This is a function of the body composition of a number of professional design, perfect to avoid consideration of human waste, that is, in working hours, with consistent operating procedures, personnel engaged in handy, have a high efficiency, high-quality works perfectly;
Overall shape bright colors, paint the surface and the skin-phosphate rust-proof handle, wear-resistant impact;
Mirror handle the face, after grinding desktop and chrome, showing the precise smooth face;
Four position switch precise valve control guidelines, is the correct use of punching machine, bend board tools, cutting tools location;
Footswitch security firm, can control the import and return to oil;

Model EPCB-301
Function Cut, impact hole, bend
Voltage 220V, 50Hz, Single phase
Rating work oil pressure 700 kgf/cm2 (safety enactment value of overtop press)
Cut board output 25 Ton
Cutting range Copper and Aluminum board Width 150mm, Thickness12mm
Punch output 30 Ton
Punching range Copper and Aluminum board Width 150mm, Thickness12mm
Punch mould Dia 3/8"(10.5mm), 1/2"(13.8mm), 5/8"(17mm), 3/4"(20.5mm)
Bend output 25 Ton
Bending range Copper and Aluminum board Width 150mm, Thickness12mm
